ACM Garage Doors

ACM Garage Doors

ACM Garage Doors

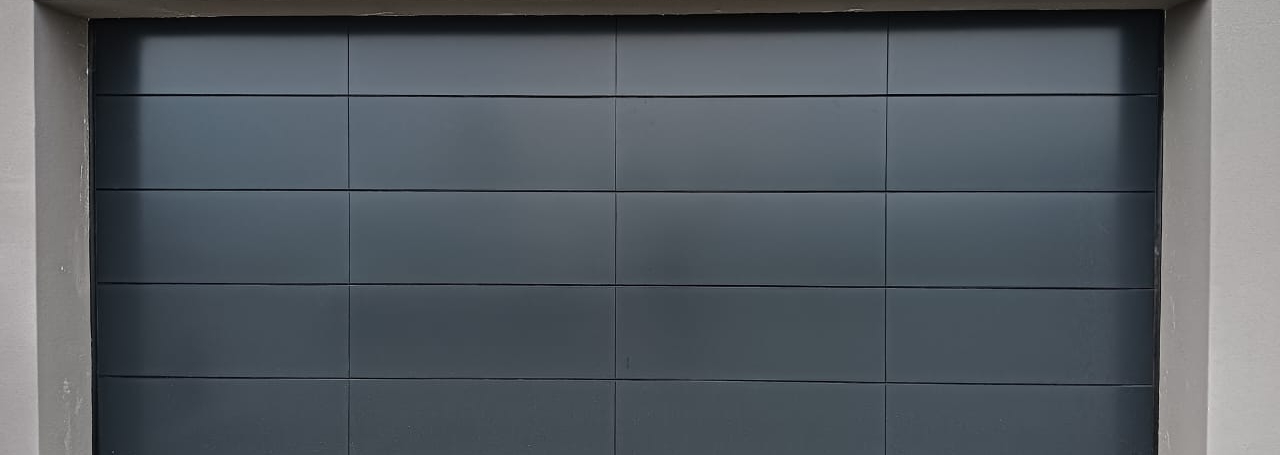

Our stunning ACM Garage door range offers stylish, contemporary doors that are ideal for applications where protection is needed while adding elegance to the home. The ultimate finishing touch for sleek, modern homes and buildings.


  • Our ACM, 5 hinged panel section doors are manufactured from extruded aluminium and 3mm ACM material.
  • The aluminium profiles are framed together with matching mullions and pressure locking internal glazing beads.
  • The side mullions are bolted for additional strength.
  • A double door panel will consist of two ACM panels with a “line” in the centre where they meet and will have a ±3mm black rubber “line” between each of the panels.


  • Superior quality and durability
  • Low maintenance
  • Modern “Frameless” ACM aesthetic
  • Aluminium skins with composite insulation
  • Quality hardware
  • Smooth and quiet operation
  • Versatile options in ACM type and sizes

 Available Colours

These doors are available in natural anodized aluminium or can be powder coated with a wide range of standard and special colours to match any building or home perfectly.

Standard Aluminium inner frame colours available:

  • White
  • Charcoal
  • Bronze
  • Black

ACM Panels

The ACM features two aluminium cover layers (0.3mm) sandwiching a composite core. It has a thickness of 3mm and comes in a variety of colours.

Available Sizes:

Standard opening sizes:

  • Single 2440mm (W) x 2135mm (H)
  • Double 4880mm (W) x 2135mm (H)
  • Single Caravan 2440mm (W) x 2550mm (H)
  • Double Caravan 4880mm (W) x 2550mm (H)
  • Custom sizes can be manufactured upon request
